End Milling Tools

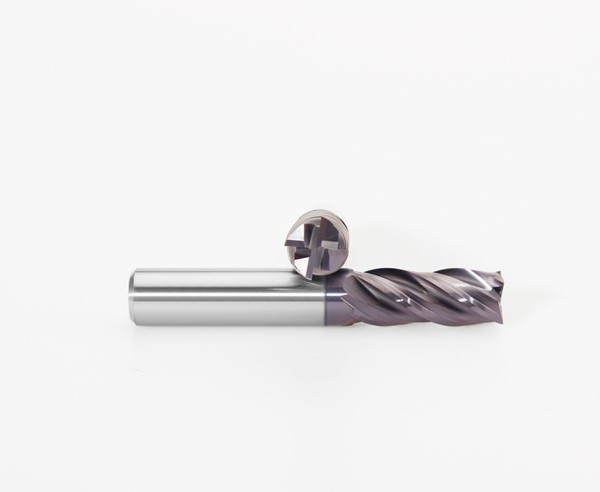

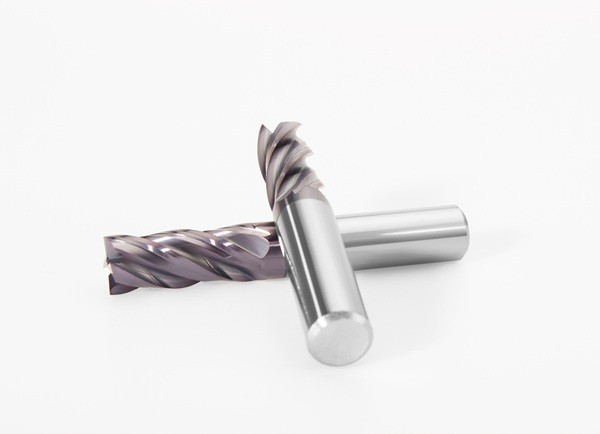

Name: Carbide End Mills
Features: High-feed geometry, strong tool body, advanced coating.
Advantages: Enables deep cuts & high feeds with excellent stability.
Benefits: Removes metal faster, cuts total job time, lowers cost.

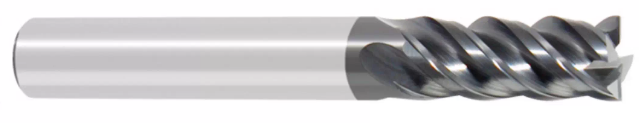

HPC End Milling Tools

Name: Carbide End Mills

Features: High-feed geometry, strong tool body, advanced coating.

Advantages: Enables deep cuts & high feeds with excellent stability.

Benefits: Removes metal faster, cuts total job time, lowers cost.

1.Material: Tungsten carbide;

2. Usage:Suitable for materials of hardness 25-40HRC;

3. Surface Coating: AlCr;

4. With the uneven angles flute as above picture;

5. The lateral pressure on the tool handle（Optional）.

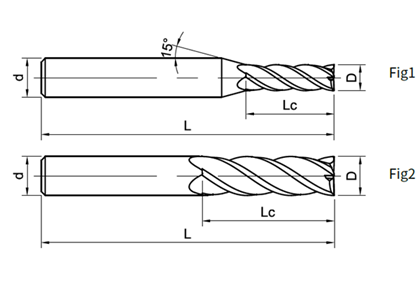

6. Specification (Unit: mm)

Item No.	Dia. of cut (D)	Length of cut (Lc)	Overall Length(L)	Shank Dia(d)	No. of teeth(Z)
DIA-4	4	15	60	4	4
DIA-5	5	20	65	5	4
DIA-5	5	20	65	6	4
DIA-6	6	20	70	6	4
DIA-8	8	25	75	8	4
DIA-10	10	35	100	10	4
DIA-12	12	45	100	12	4
DIA-16	16	55	120	16	4
